Schüco

ASS 80 FD.HI

Products » Sliding systems » Sliding Systems Schüco » ASS 80 FD.HI

This is a sliding system which features the best weathertightness you may require combined with a wide range of variations and high levels of thermal insulation.

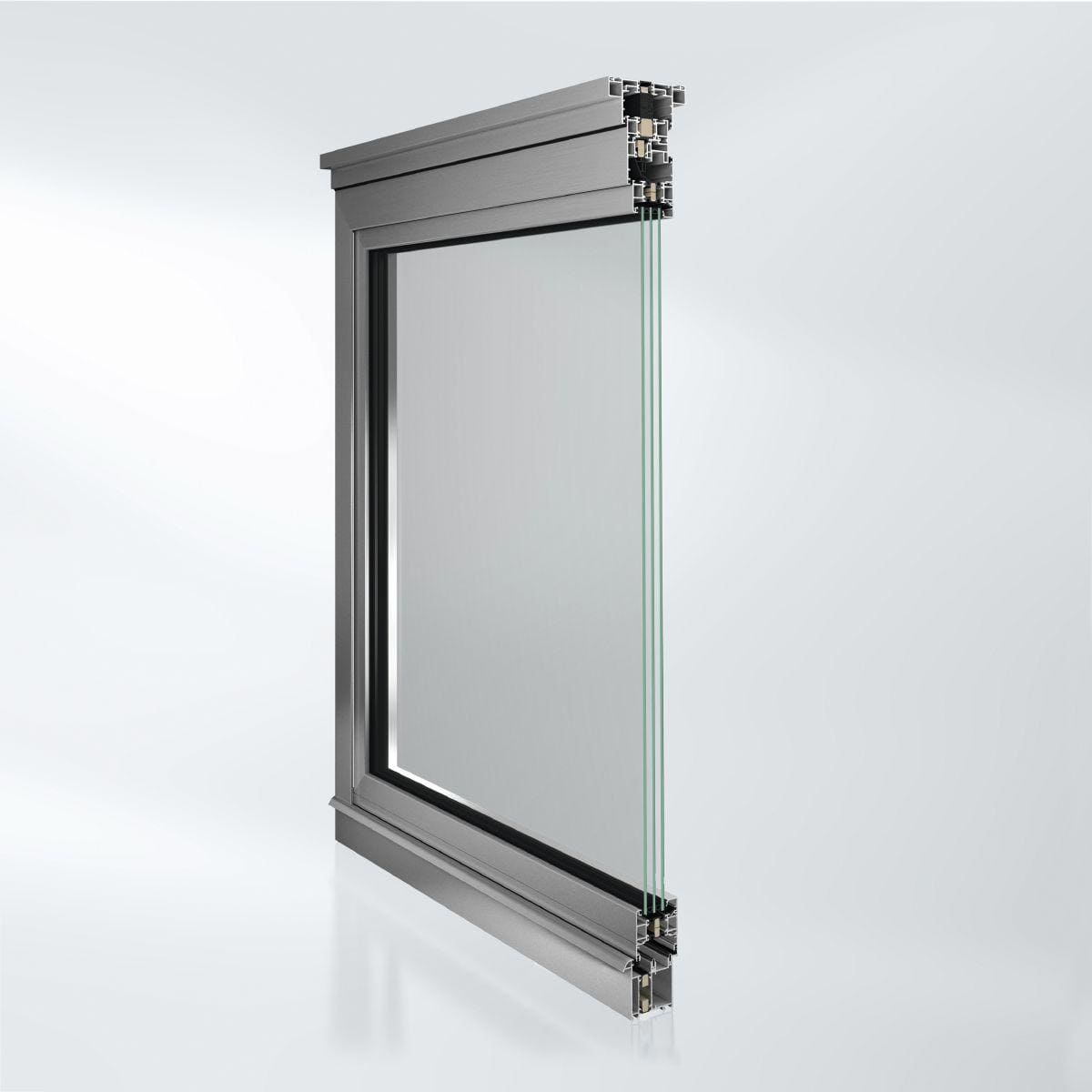

The Schuco ASS 80 FD. HI represents a bi-fold structure with narrow face widths and an attractive type of opening with the corner of 90 degrees. It is equipped with an additional flat and thermally insulated threshold for a variety of design options.

The system is quite visually appealing and suitable for outdoor uses. It can be provided with a magnetic retaining catch with an elegant design and a flat door handle that fits any purpose. The product also integrates a centre gasket in its outer frame allowing for two drainage levels and additional glazing insulation.

Specifications

ASS 80 FD.HI

Uf value of frame (≥):	1,7 W / (m²·K)
Wind load resistance:	Class C2 / B3
Watertightness:	Class 8А
Air permeability:	Class 3
Max. vent weight:	100 kg
Min.-max. glass/panel thickness:	13…53 mm

ask for a quote
