MB SKYLINE TYPE R - alumglass

This cutting-edge sliding door system adds a lot to the contemporary look of the construction and allows for achieving a great panoramic view.

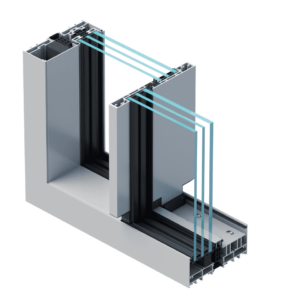

The Aluprof MB SKYLINE TYPE R sliding system is an almost invisible door leaf profile with a shallow frame and slender mullion for the most comfortable opening and closing of even the most massive doors. The mechanism is soundless. Its durability provides the option of designing a perfect glass wall.

The door frame can be built into the floor, ceiling or wall. The structure can bear the leaves of 500 kg and 700 kg are possible for automatically operated doors. The product has great insulation characteristics with very high thermal parameters. The rollers are made of stainless steel or black polyamide.

Uf value of frame (≥): 0,85 W/(m²·K)
Wind load resistance: Class C5 (2000Pa), EN 12210
Watertightness: Class 9A (600Pa), EN 12208
Air permeability: Class 3, EN 12207
Max. vent weight: 750 kg
Min.-max. glass/panel thickness: 52...60 mm
Full description
