ASE 60
This is represented by sliding and lift-and-slide systems with perfect thermal insulation properties, certified burglar resistance, and convenient face widths.

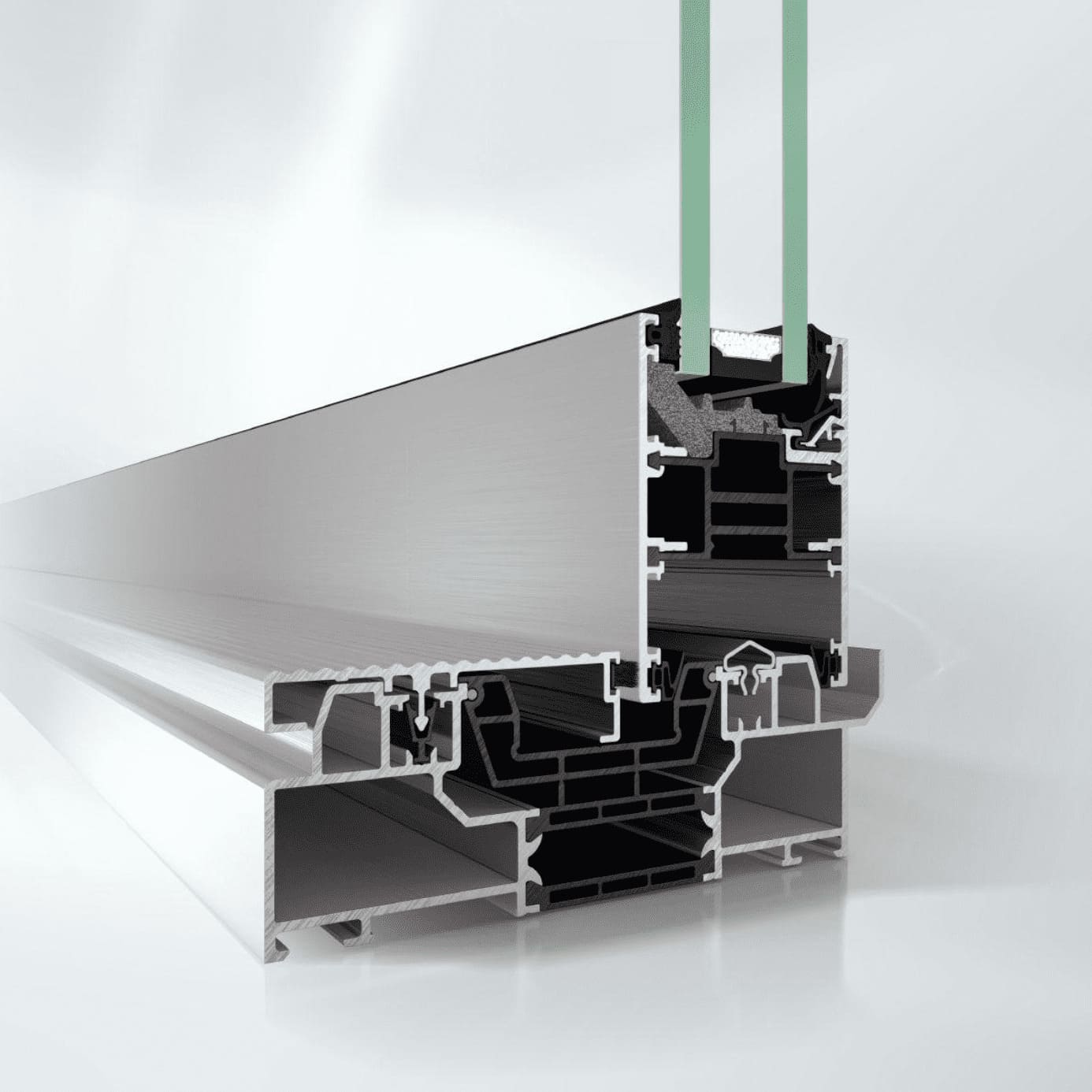

The Schuco ASE 60 sliding system features optional components for sleek fittings – Schuco SmartStop and Schuco SmartClose – for more security and comfort. The well-designed interlock section helps outside and inside parts merge together and it is very comfortable in everyday use.
The concealed fitting components provide the best quality of operating and allow for reducing inconveniences of storage. The installation of the vent in the frame is quite easy and reliable due to a continuous vent slider profile.
Specifications
Uf value of frame (≥):
1.8 W/(m²·K)
Wind load resistance:
Class C5 / B5
Watertightness:
E 900
Air permeability:
Class 4
Max. vent weight:
500 kg
Min.-max. glass/panel thickness:
24...40 mm
