Reynaers

CW 86

Products » Glass Facades » Reynaers Glass Facades » CW 86

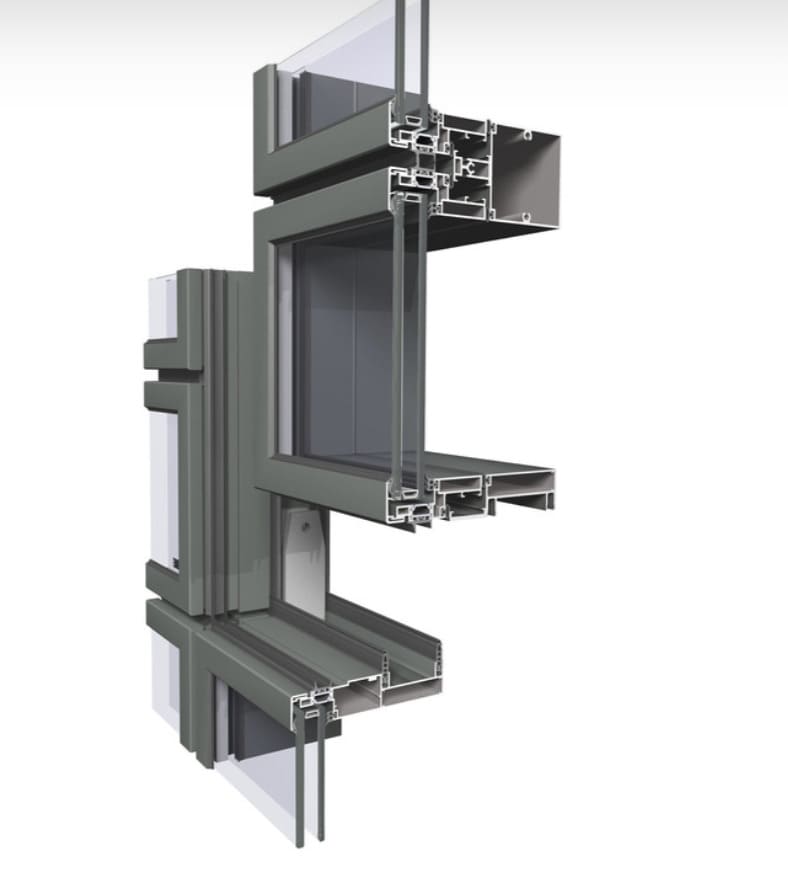

This is a Concept Wall type of curtain walls with the minimal joint between the glass panes and glazing beads, offering the high performance options against wind, water and air with high insulative components.

The Reynaers CW 86 complies with all the requirements for large construction projects, and features the great execution speed on the building site due to its pre-assembled cassettes and elements. The system is available in two glazing variants – Cassette Glazing that uses glazing beads and Structural Sealed Glazing providing a complete glass surface at the outside part of a building.

The structure offers different levels of energetic performance due to thermally insulated profiles and specific drainage methods for better air and water tightness. That allows for its applications in the extreme conditions of high altitudes or coastal areas. It can seamlessly integrate different types of sunscreen systems, doors, and windows.

Specifications

CW 86

Uf value of frame (≥):	3.9 W / (m²·K)
Wind load resistance:	400 Pa
Watertightness:	RE1050 (1050 Pa)
Air permeability:	B5 (2000 Pa)
Min.-max. glass/panel thickness:	4…38 mm

ask for a quote
