Schüco

AD UP 75

Products » Aluminium doors » Aluminum Doors Schüco » AD UP 75

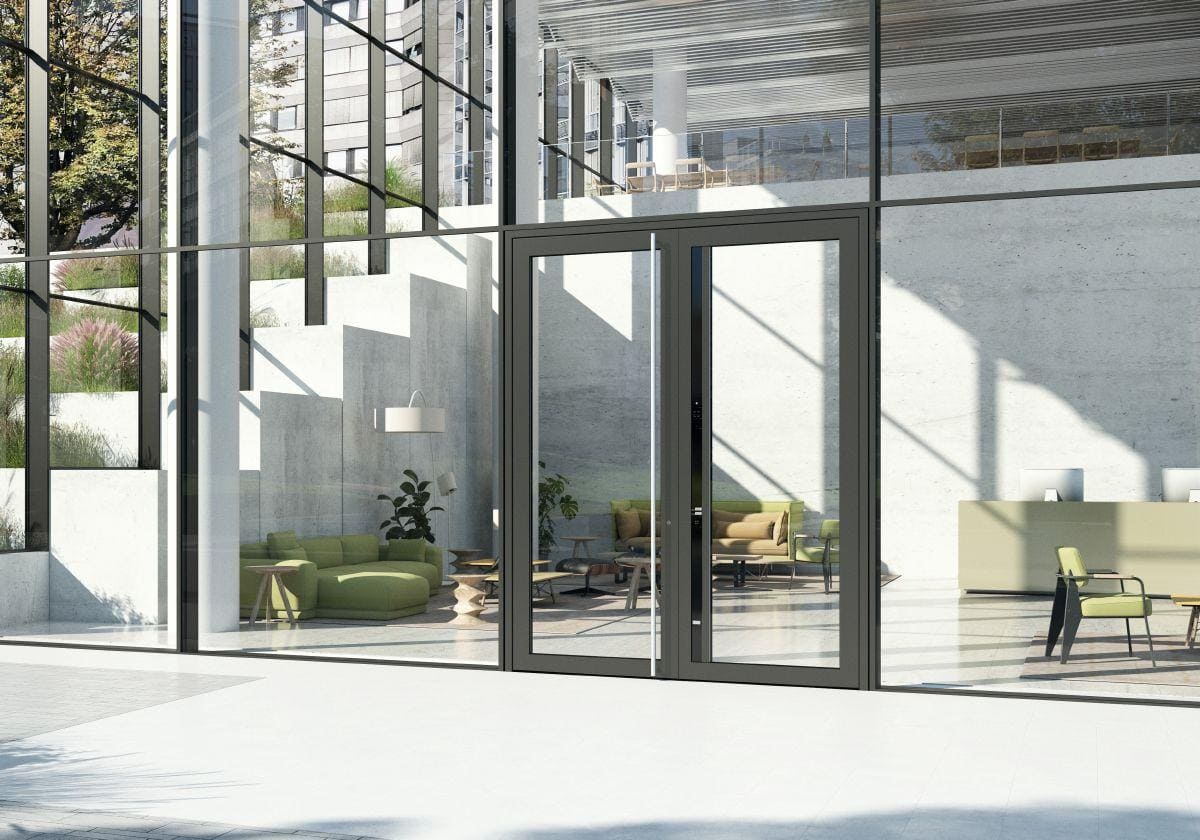

This item can be used universally as a stylish entrance door or commercial door.

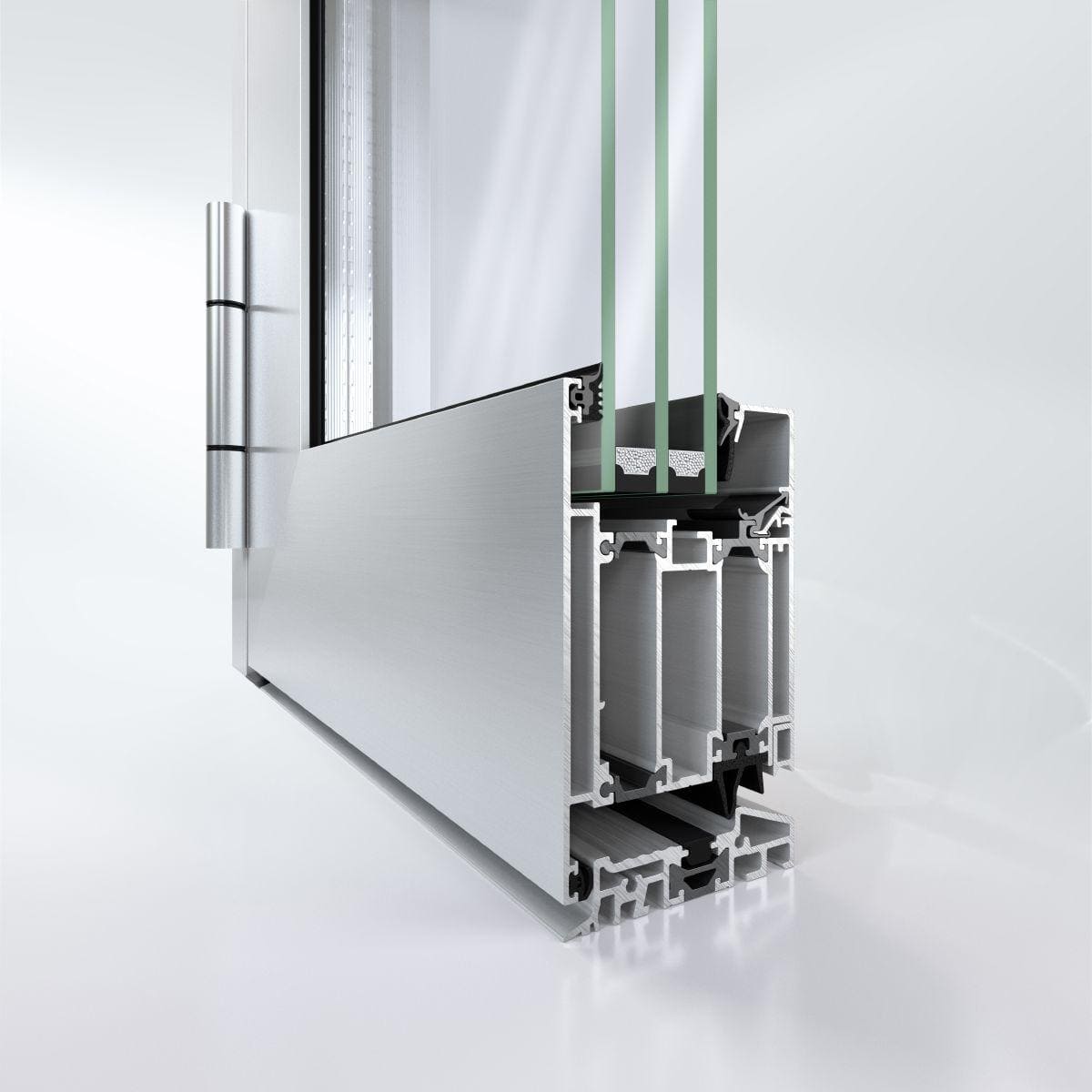

The Schuco AD UP 75 door system features a 75 mm basic depth which can be reliably used in all premium residential and commercial constructions.

It also has perfect insulation properties and high stability due to the modular gasket system. It provides immense weathertightness, durability, and load-bearing capacity.

The outward or inward opening solutions are very stylish and they can fit any life or work style.

The item uses the clamping anchor technology providing boosted adjustment options, easy side-hung installation, and an aluminum composite threshold with a concealed fixing mechanism.

Specifications

AD UP 75

Uf value of frame (≥):	1.6 W / (m²·K)
Wind load resistance:	Class C3 / B3
Watertightness:	E 750
Air permeability:	Class 4
Max. vent weight:	200 kg
Min.-max. glass/panel thickness:	13…53 mm
Burglar resistance:	Up to RC 2

ask for a quote
